Aipu Data Cable UL 20276 PE n'otu n'otu mebiri PVC Mpụga Sheath USB na-ebugharị na igwe na sistemu bọọdụ.

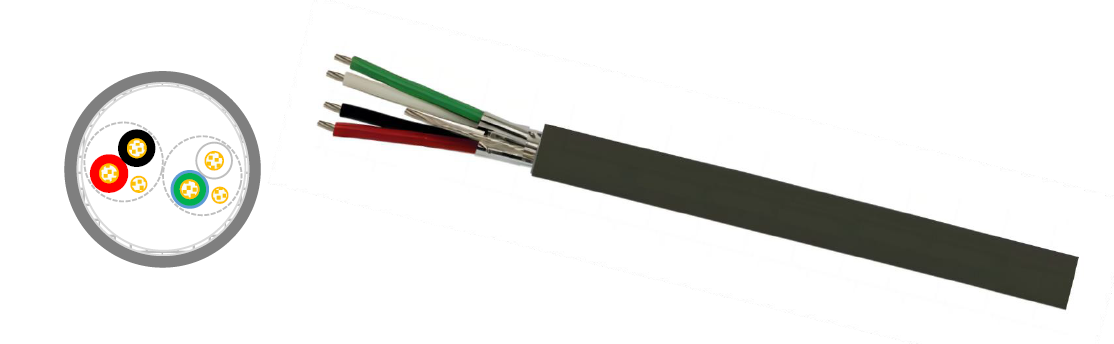

Aipu Data Cable UL 20276 PE n'otu n'otu emebiela PVC Mpụga Sheath na-ebufe Cable n'ime igwe na Sistemụ Switchboard gosipụtara onyonyo.

PE cores, ụzọ abụọ n'otu n'otu mebiri emebi, n'ọbọ elu PVC

Owuwu
Onye nduzi Tinned annealed wires ọla kọpa 2
Mkpuchi PE
Isi njirimara 1P = BK & RD, 2P = GN & WH
Shield Cores gbakọtara ọnụ na abụọ na 100% aluminom foiling, tinned annealed ọla kọpa.
waya, braiding ọla kọpa tinned annealed
Sheath PVC, Agba na pebble isi awọ (RAL 7005)

Ngwa
Ọ dị mma maka ọnụego nnyefe data dị elu n'ihi nyocha foil nke ọ bụla.A na-ejikarị dị ka eriri nnyefe data na
igwe na sistemu bọọdụ ebe attenuation okwu dị nso nwere ike bụrụ nsogbu

Zitere anyị email

Nkọwa ngwaahịa

Mkpado ngwaahịa

AịpuIgwe dataUL 20276 PE Cores Pairs n'otu n'otu mebiri emebi PVC dị n'elueriri nnyefena Machine na Switchboard Systems

Ọkọlọtọ
PVC onwe-emenyụ na ire ere retardant acc.IEC 60332-1-2 / VW-1
ÀJÀ
Ogo voltaji 30V
Nnwale voltaji 500kV
Oke okpomọkụ -20°C ruo +60°C
Opekempe na-ehulata Radius na-agbanwe 20 x eriri Ø, eriri 15 x Ø edoziri
Ngwa
Ọ dị mma maka ọnụego nnyefe data dị elu n'ihi nyocha foil nke ọ bụla.A na-ejikarị dị ka eriri nnyefe data na
igwe na sistemu bọọdụ ebe attenuation okwu dị nso nwere ike bụrụ nsogbu
